Simpson Strong-Tie TJC37 Adjustable Jack Truss Connector – 3-1/8" x 7", G90 Galvanized Steel

Product Description:
The Simpson Strong-Tie TJC37 Jack Truss Connector is engineered to provide a robust and versatile solution for connecting jack trusses to main trusses or rafters. Crafted from 16-gauge steel and finished with G90 galvanized coating, this connector ensures enhanced corrosion resistance and long-lasting durability. Its adjustable design allows for installation angles ranging from 0° to 85°, with each unit shipped with a 67.5° pre-bend, facilitating precise alignment and secure connections. The strategically placed nail holes simplify the installation process, reducing labor time and enhancing structural integrity.

Key Features:

Adjustable Angle: Accommodates angles from 0° to 85°, with a 67.5° pre-bend for ease of installation.

Corrosion-Resistant Finish: G90 galvanized coating provides superior protection against rust and corrosion.

Durable Construction: Manufactured from 16-gauge steel for strength and reliability.

Easy Installation: Nail holes are pre-punched to facilitate quick and secure fastening.

Versatile Application: Ideal for connecting jack trusses in various roofing and framing projects.

Specifications:

Material: 16-Gauge Steel

Finish: G90 Galvanized

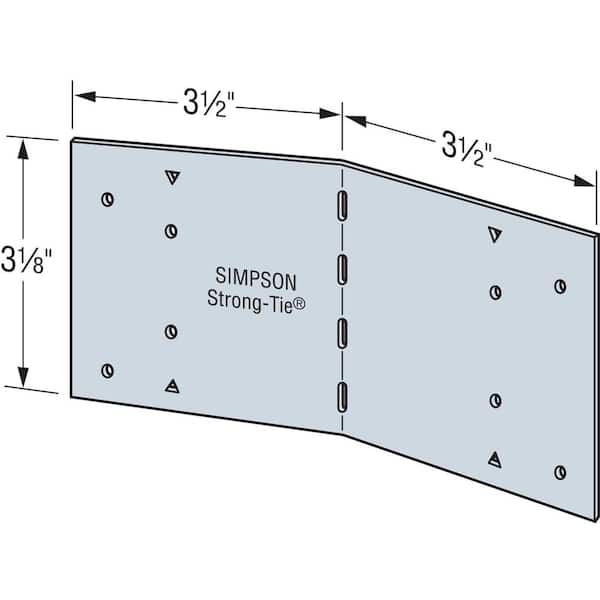

Dimensions: 3-1/8" x 7"

Angle Adjustment: 0° to 85° (67.5° pre-bend)

Fasteners Required: 4 to 6 nails per connection (0.131" x 1-1/2")

Installation Notes:
For optimal performance, ensure that the connector is installed with the appropriate number of nails as specified. The TJC37 is designed for use with single-ply carried members with a minimum size of 89 x 38 mm. No bevel cuts are required, and the connector can be installed filling round holes only, or both round and triangle holes for maximum load values.
